应昌期围棋教育基金会新棋罐设计案

应昌期围棋教育基金会新棋罐设计案
2022年08月05日 14:31 新浪体育综合

  应昌期围棋教育基金会新棋罐设计案

  New Go can design of the Ing Chang-Ki Go Educational Foundation

  设计案Design A

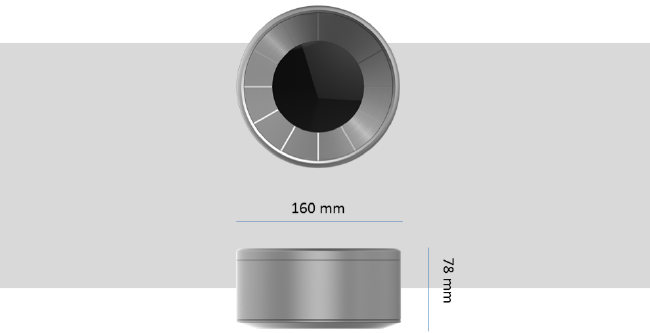

  尺寸图 Size Chart

  外层透明内层罐体颜色用来识别黑、白棋并增加层次感。

  The transparent outer and B/W colored inner can are used to black and white stones and increase the sense of hierarchy。

  可更换不同材质、颜色及表面处理的罐盖铭板,使棋罐多样的调性及风格能客制化,达到展现棋士个性化的结果。

  The lid nameplate can be replaced with different materials, colors and finishes to customize the various tones and styles of the go can and achieve the result of personalizing the go player。

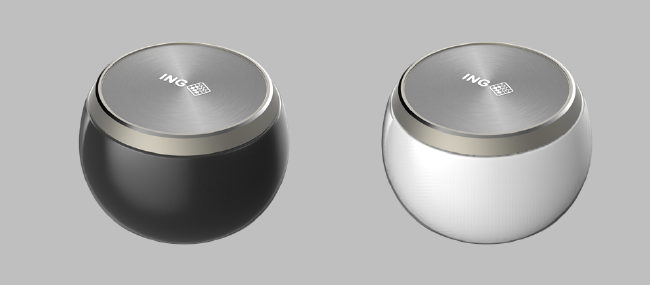

  棋罐体采用高光的表面处理,呈现亮丽且科技的高质量,罐体色可识别黑、白棋。

  The go cans have a high gloss finish, presenting a bright and technological high quality, and the color of cans can be used to identify black and white stones。

  可更换材质的罐体表面材质,用以塑造产品不同的个性。

  Interchangeable surface materials can be used to create different product personalities。

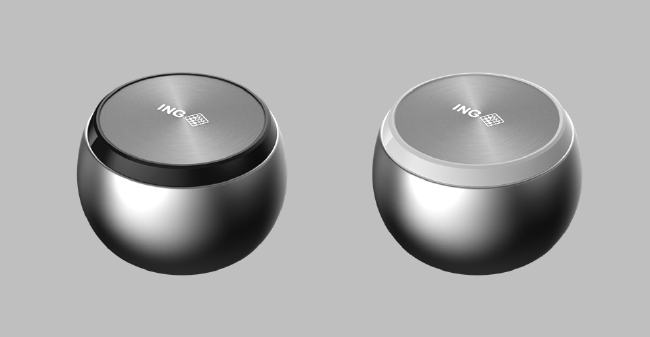

  罐盖颜色用来识别黑、白棋子,罐盖铭板及罐体材质及颜色均可更换。

  The color of the lid is used to identify the black and white stones, the lid nameplate and can material and color can be changed。

  罐体本身的表面材质及颜色亦可更换。

  The surface material and color of the go can itself can be changed。

  设计案Design B

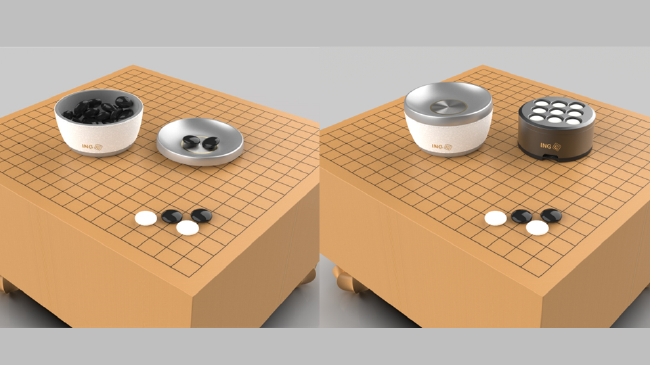

  打破传统木质棋罐的既定印象,采用金属罐身,搭配皮革套筒,并可在罐顶中心金属铭版签名,让棋士拥有奢华质感的专属棋罐套组。以罐体前方黑、白圆形造型做为黑、白棋子的辨识。专用量斗 ( 棋子计数器 ) 收纳在罐体之内。

  The metal body with leather sleeve and signature on the metal plate at the center of the top of the go can are a break from the traditional image of wooden cans, giving go players an exclusive set of cans with a luxurious texture。 The black and white stones are identified by the black and white round shape on the front of the can。 A measuring hopper ( stone counter ) is stored inside the go can。

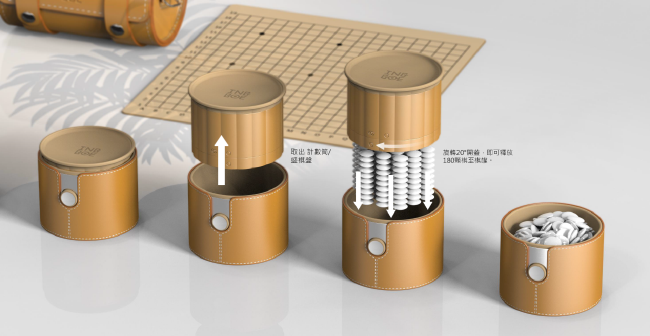

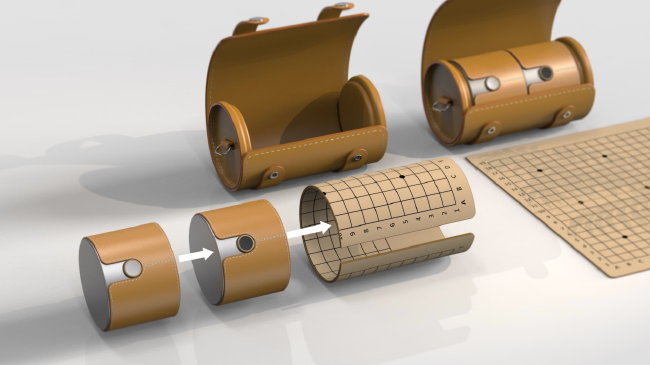

  向上拉出皮制棋罐盖并反转,再将棋罐连同量斗置入皮制棋罐盖内。

  Pull out the leather can lid and turn it upside down, then place the go can together with the measuring cup into the leather can lid。

  取出量斗置放于棋罐上方,旋转量斗下盖将棋子置入棋罐内。

  Take out the measuring cup and place it on top of the go can。 Rotate the lid of the measuring cup to place the stones into the go can。

  量斗顶可用来盛放提子。

  The top of the measuring hopper can be used to hold removed stones from the opponent。

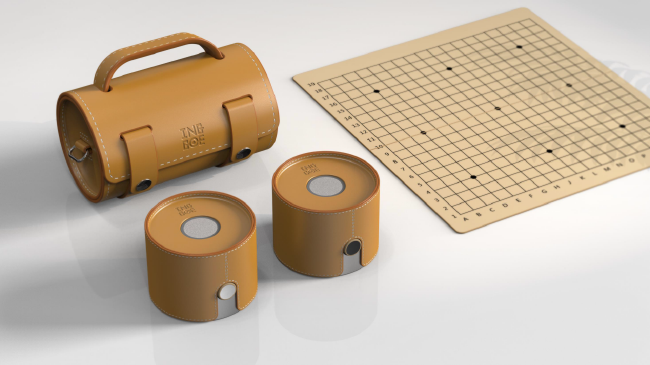

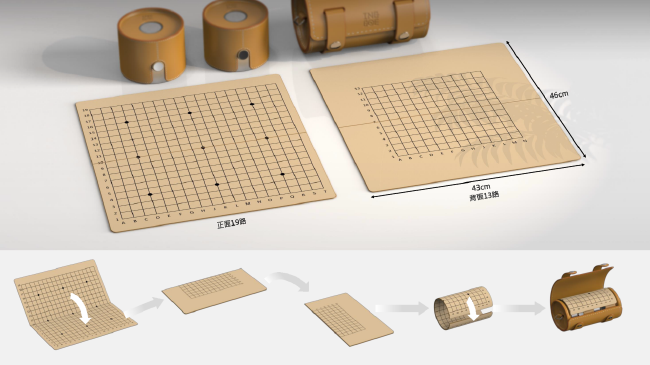

  皮革制的棋盘可卷曲折迭收纳。

  The leather go board can be rolled and folded for storage。

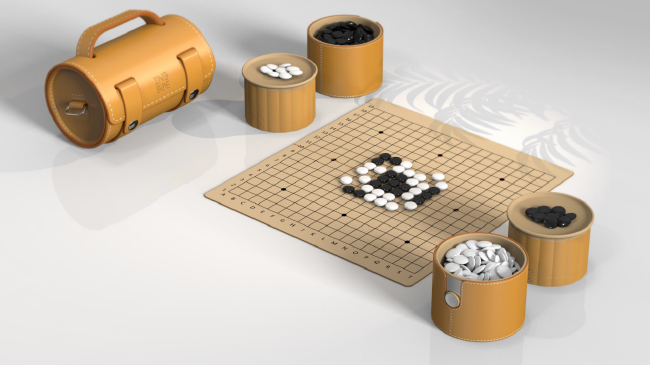

  收纳设计 - 随行包内含2组棋罐 2组量斗 及1张皮制棋盘

  Storage design - 2 sets of go cans, 2 sets of measuring hoppers and one leather go board are included in the travelling bag。

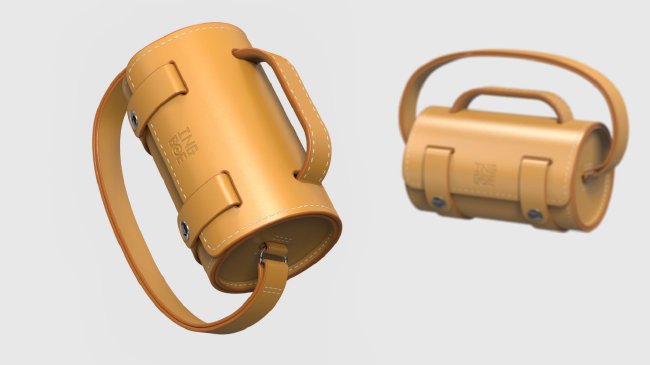

  收纳包可手提及肩背两用

  The storage bag can be used for carrying and shoulder back。

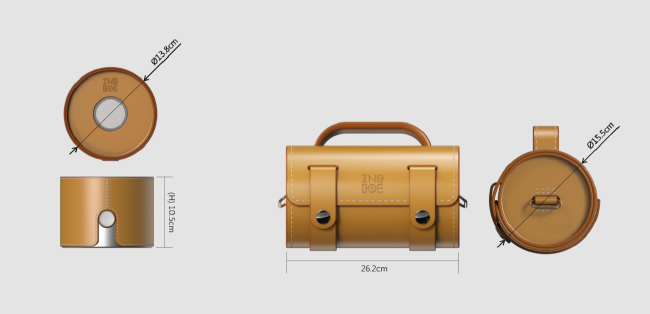

  棋罐尺寸:直径138mm x 高105mm;随行包尺寸:直径155mm x 高262mm

  Go can size: DIA 138 x height 105.Travelling bag size: DIA 155 x height 262mm。

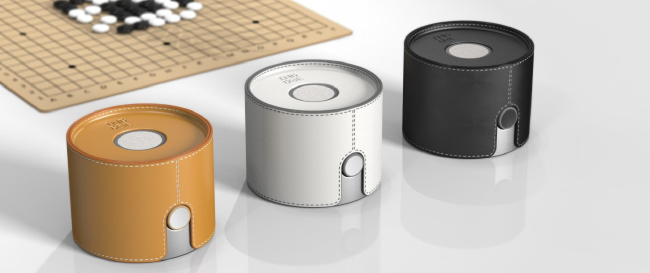

  色彩计划 ( 由左至右 ) - 骆色皮革/橘色边油/白色缝线-白色皮革/灰色边油/深灰缝线-黑色皮革/黑色边油/浅灰缝线

  Color scheme ( L to R ) - Lock leather / orange edge oil / white stitching - white leather / grey edge oil / dark grey stitching - black leather / black edge oil / light grey stitching

  设计案Design C

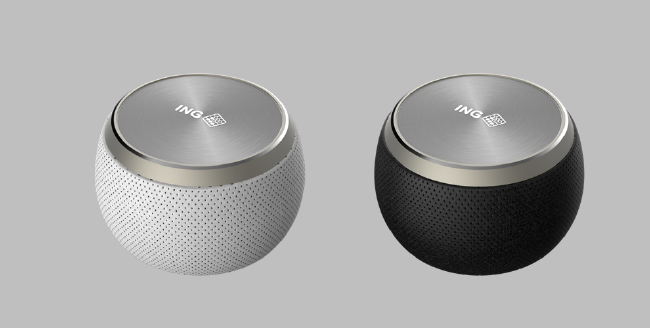

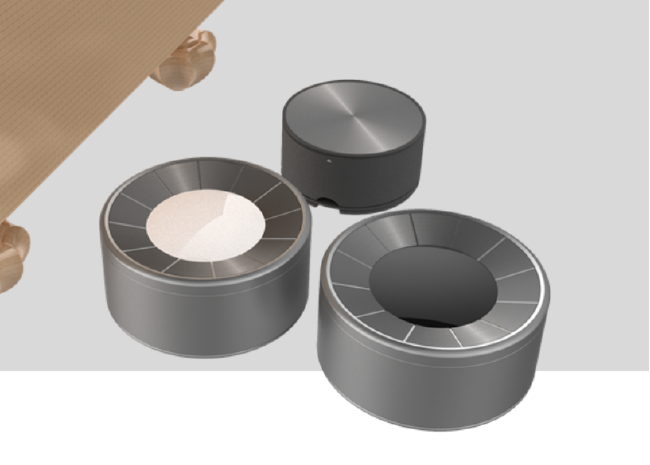

  金属雾面处理棋罐以简洁利落造型体现现代风及科技感

  Metallic matte finish Go can with simple and clean shape to reflect the modern style and sense of technology

  1。 装饰铭板 – 透过磁吸及定位点作为卡锁

  1。 decorative nameplate - magnetic and positioning points as a lock。

  2。 上下盖 – 以旋转方式锁紧

  2。 Upper and lower lids – rotate to lock。

  3。 收纳性 - 上盖可利用磁吸固定于棋罐底

  3。 Storage - the top lid can be magnetically attached to the bottom of the can。

  4。 上盖凹槽 – 对战时, 可将提吃对方的黑或白子置放于上

  4。 Recessed top lid - when playing against each other, you can place the B or W

  removed stones of your opponent on it。

  5。 饰盖 – 用于分辨黑、白棋罐

  5。 Decorative lid - for distinguishing between B and W go cans。

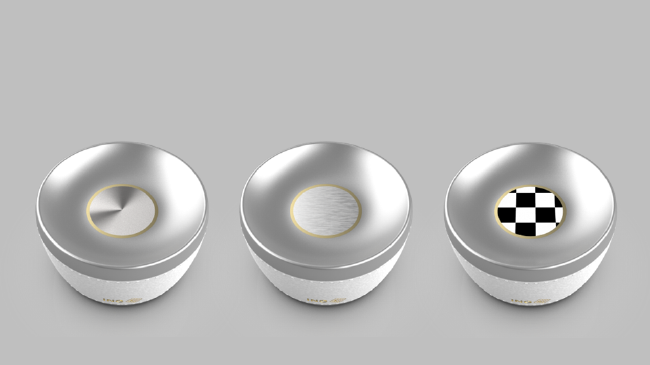

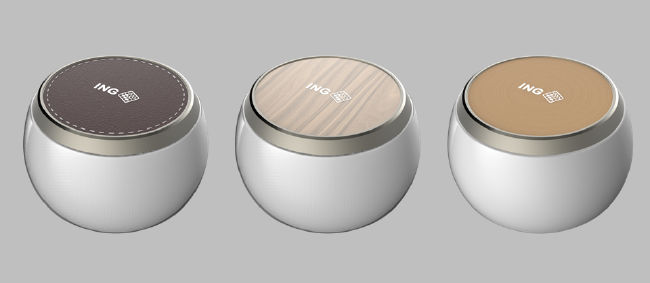

  表面处理材质Surface treatment material

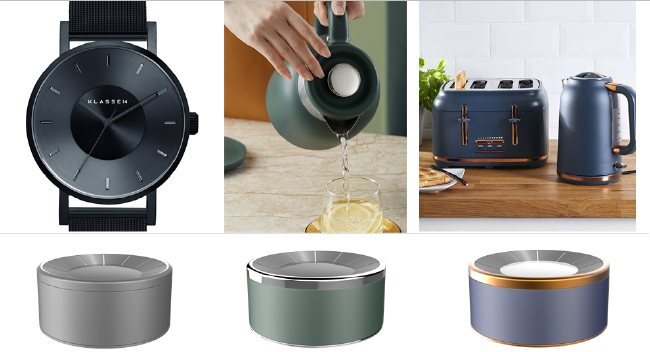

  棋罐配色 Go can color scheme

  尺寸图 Size Chart

  设计案Design D

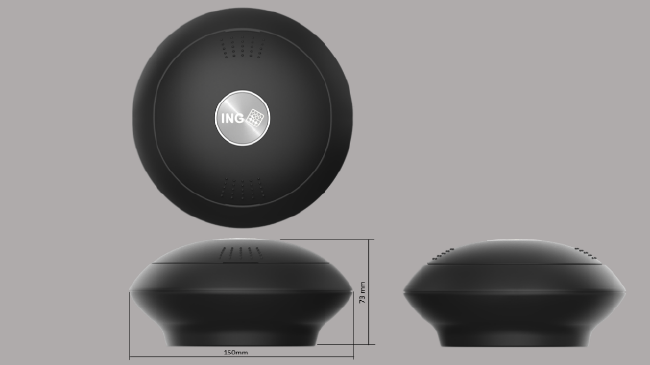

  尺寸图 Size Chart

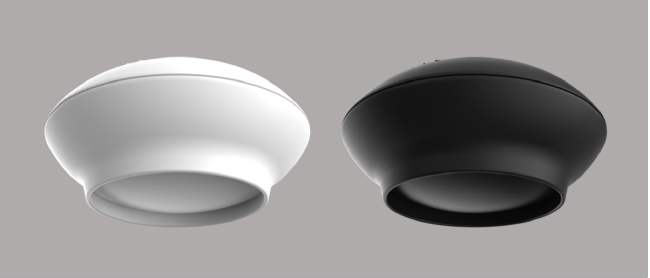

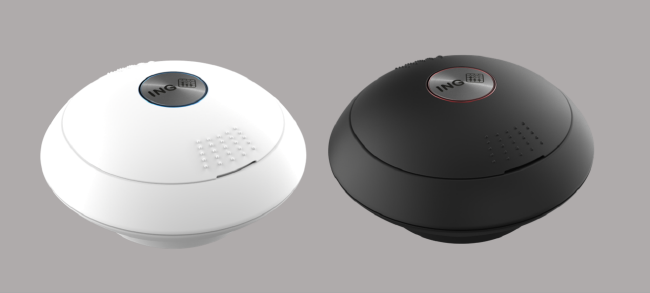

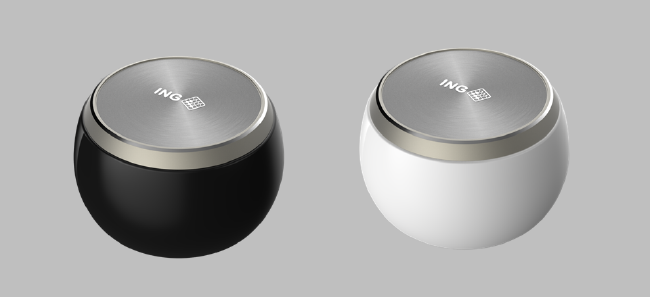

  以棋罐颜色识别黑、白棋

  Identify B and W with the color of the go can

  两种不同的止滑旋盖设计

  Two different designs of non-slip cover

  个性化可更换不同材质、颜色及表面处理铭板

  Customizable nameplate with different materials, colors and finishes。

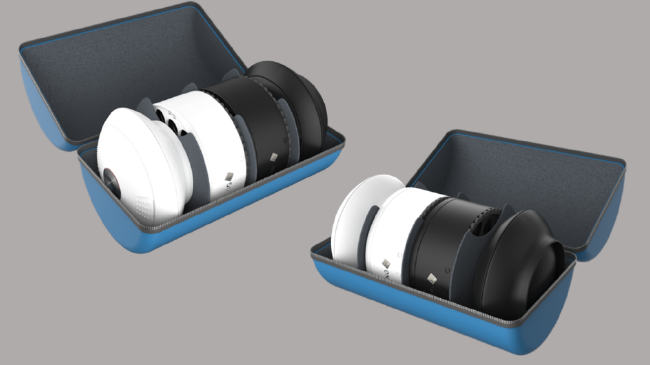

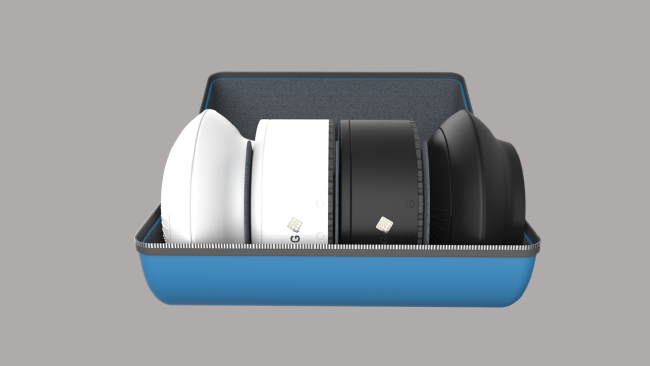

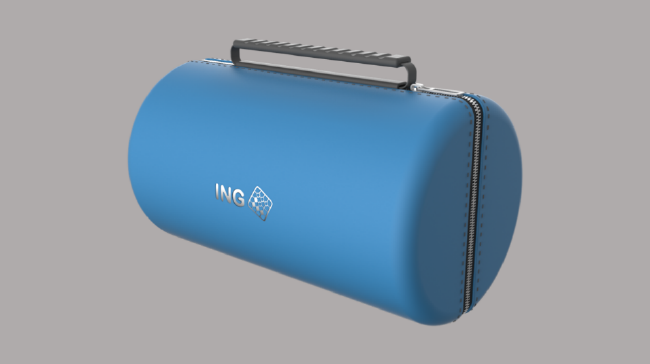

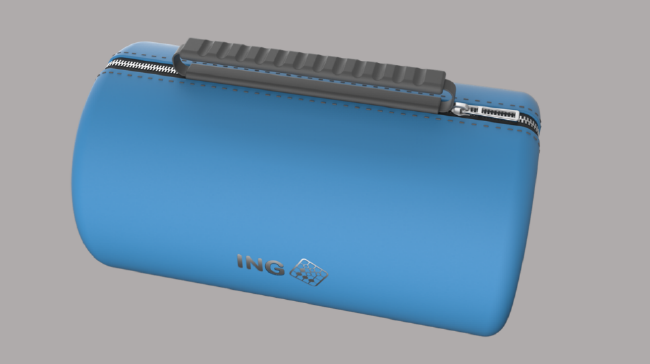

  EVA 材质收纳包

  EVA material storage bags

  设计案Design E

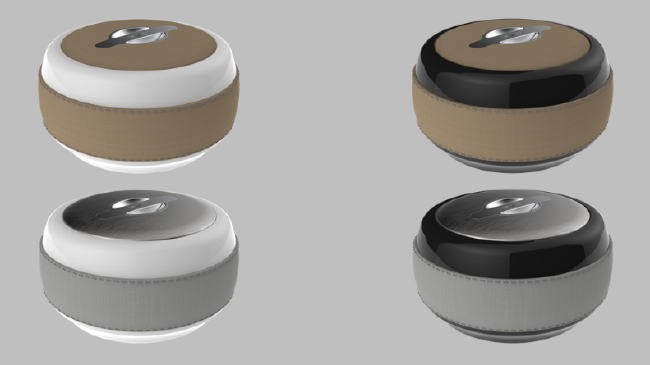

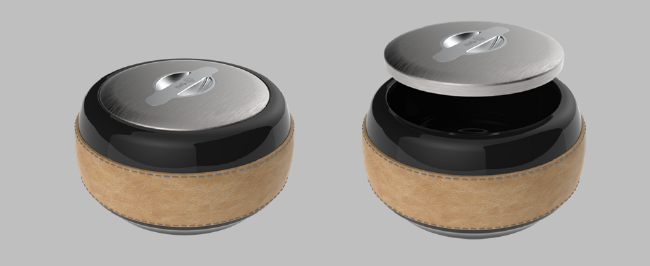

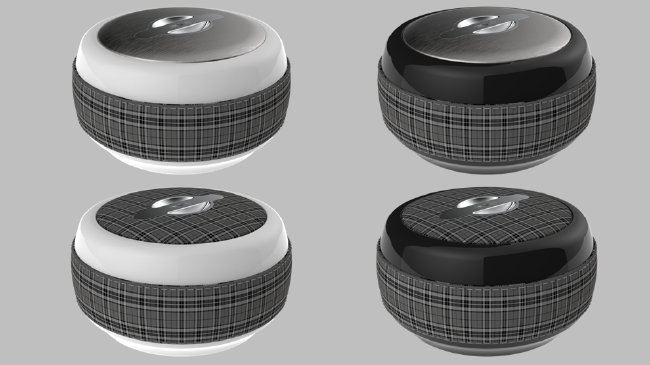

  罐身中央皮革,搭配发丝纹金属罐盖,营造优雅高贵质感。以棋罐黑、白做辨识。

  The central leather of the can and the hairline metal lid create an elegant and noble texture。 Identified by black and white go cans。

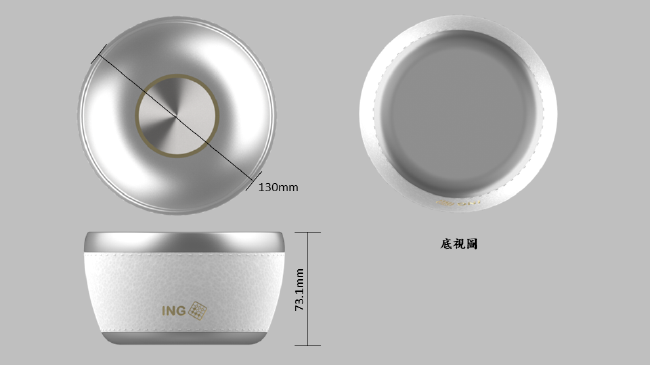

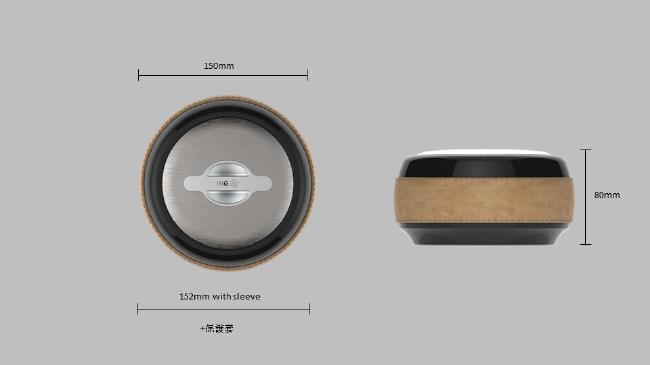

  尺寸图 Size Chart

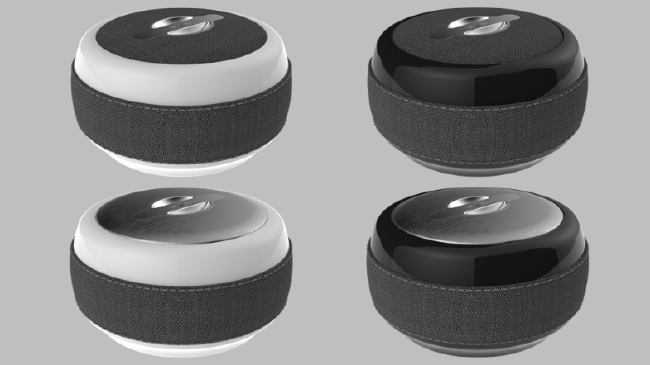

  保护套采用耐磨损强化纤维,彰显年轻帅气。保护套、罐盖材质及颜色可做变换。

  Wear-resistant reinforced fiber made cover, highlighting the handsome young。 Protector, can cover material and color can be changed。

  设计案Design F

  以皮革护套颜色或铝金属罐体的阳极发色处理识别黑、白棋

  Black and white stones are identified by the color of the leather

  sheath or the anodized color treatment of the aluminum can。

  尺寸图 Size Chart

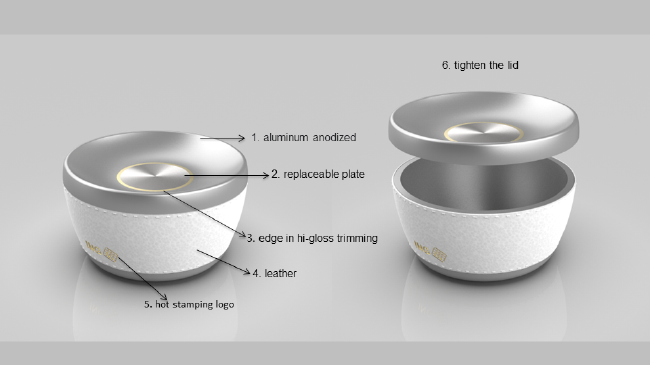

  1。 铝金属阳极处理

  1。 Aluminum metal anode treatment。

  2。可更换(个性化)铭版

  2。 Replaceable (personalized) nameplate。

  3。金属切削高光边框皮件护套

  3。 Metal cutting and high glossy frame leather sheath

  4。皮件护套

  4。 Leather sheath。

  5。烫金 logo

  5。 Gold foil logo

  6。以旋转方式开启或锁固罐盖

  6。 Rotating way to open or lock the lid

  客制化铭版 Customized inscription

  上盖凹槽对弈时可置放棋子

  The groove on the upper cover can be used to place removed stones

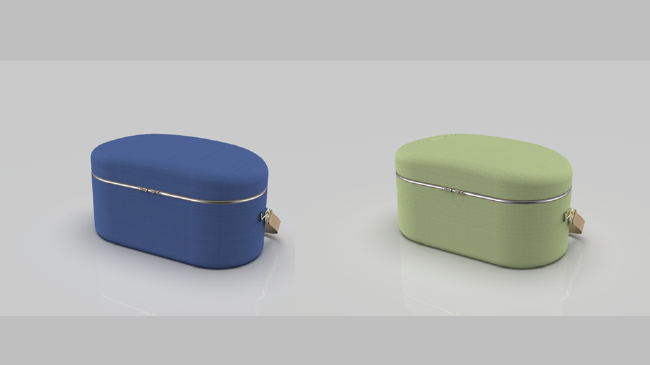

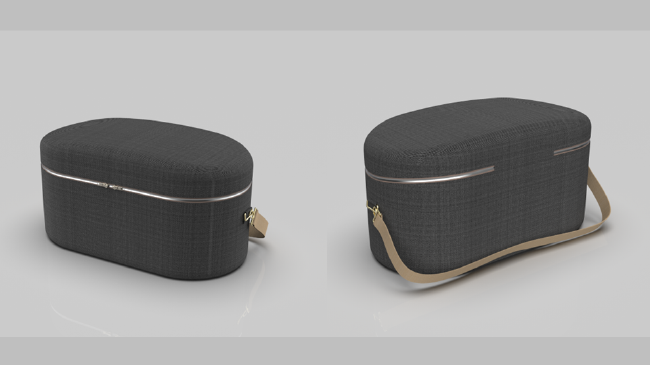

  布面收纳包 Cloth storage bag

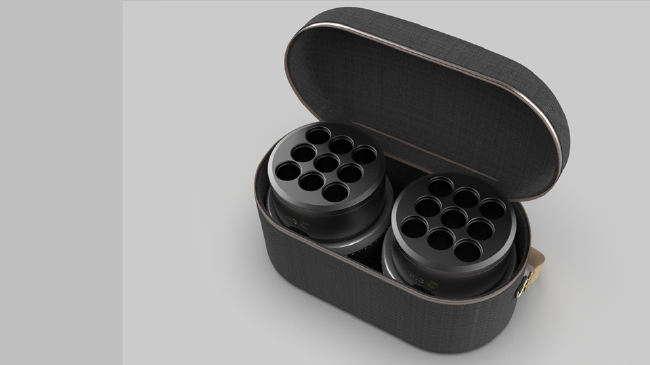

  可收纳棋罐x2 + 可计量90颗棋子量斗x2

  Storable can x2 + 90 stones measuring hopper x2

  可选择的布料质感及颜色

  Changeable fabric texture and color available

  应昌期围棋教育基金会新棋罐设计喜好调查问卷

  Survey on the design preference of the new Go Can

  of the Ing Chang-ki Go Educational Foundation

  基本数据 General Information

  姓名 Name :

  性别 Gender: □男 male □女female

  年龄 Age: □18以下 Under □18~35 □35~50 □ 50以上above

  电子邮件 Email :

  请勾选三个提案 Please check 3 proposals

  设计案

  Design 非常不喜欢

  Very dislike 不喜欢

  dislike 尚可

  Acceptable 喜欢

  like 非常喜欢

  Like it very much

  A

  B

  C

  D

  E

  F

  其他建议 Other suggestions : ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

  ___________________________________________________________________________________

  回答请将文件寄送 Please send your answer to Ingedufund@proton.me

  回答截止日期 Answer Deadline : 2022.9.30

  每人限答一次 Each person is limited to one answer mail

  给奖方式 Award method :

  一等奖1名 应氏棋桌1张

  1st Prize 1 person Ing go table 1 piece

  二等奖3名 应氏新型设计棋罐1组

  2nd Prize 3 winners Ing‘s new design go can 1 set

  三等奖30名 应氏语音計时器1只

  3rd Prize 30 winners Ing ‘s voice timer 1 set
